HiBoard-IExx

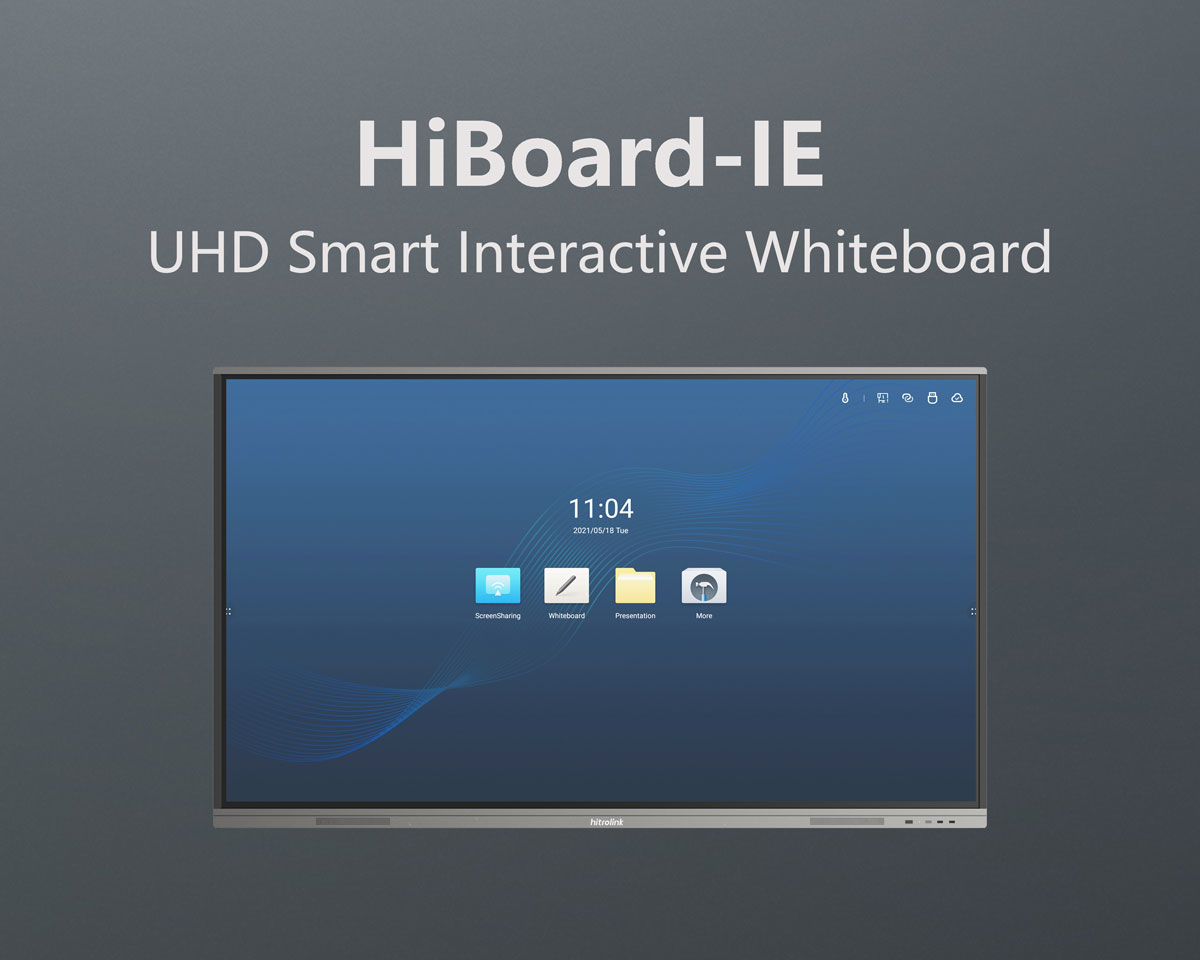

65″/75″/86″UHD Smart Interactive Whiteboard
HiBoard-IE is the new generation of intelligent conference tablet. It features 4K LED backlit display with 20-point touch, and also provides functions such as writing on whiteboard, scanning the QR code for meeting minutes, wireless projection, and 4K HD display.
SPECIFICATIONS
DATASHEET

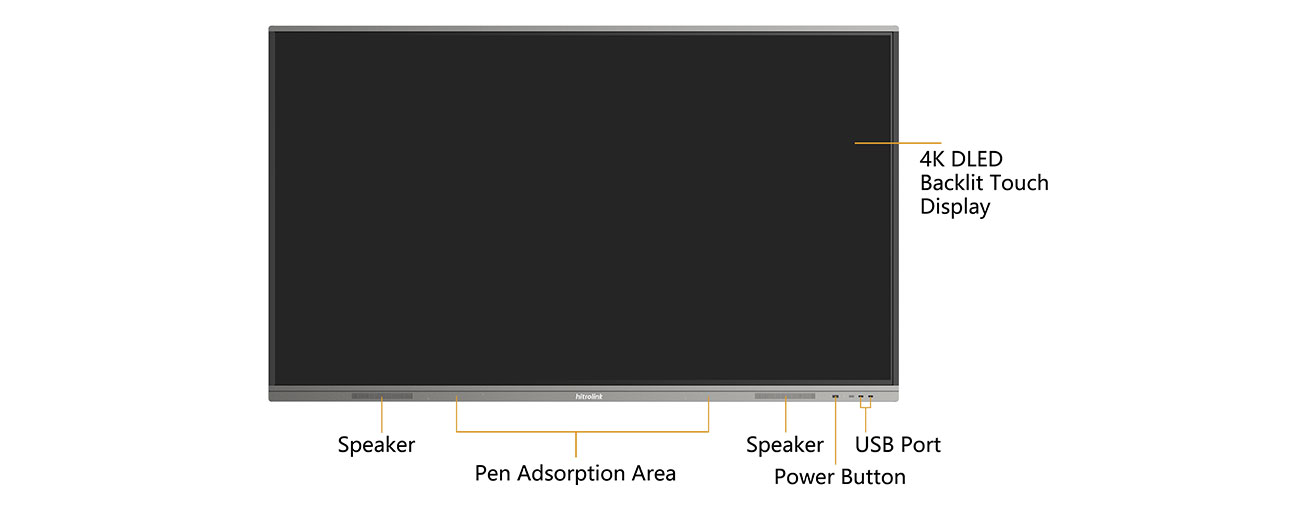

Delicate Structure, Easy Operation

  • Design

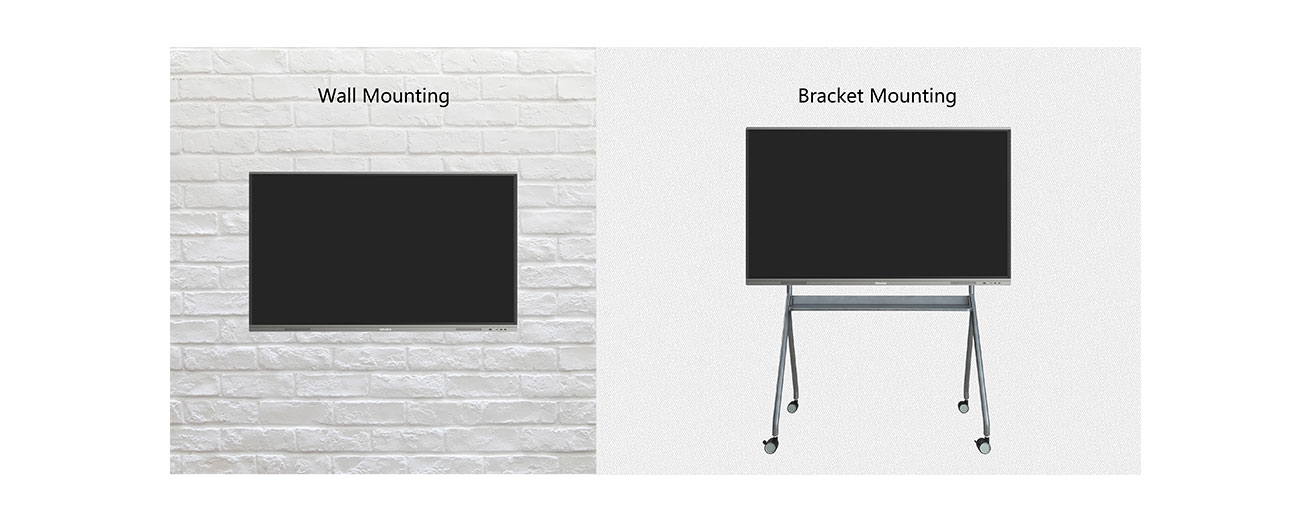

  • Setup

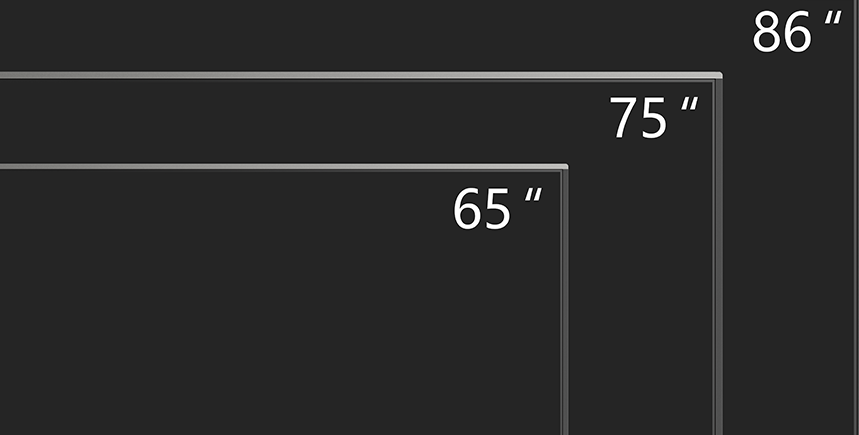

Multiple Size Selection
HiBoard-IE series provide three kinds of size selection: 65”/75”/86”. The users can choose anyone of them according to the room size and business demands.
Application Scenarios
HiBoard-IE65/75/86 can be applied in various fields such as business, education etc.
SPECIFICATIONS
  • Display
    Dimensions
    65-inch
    Display scale
    16:09
    Backlight type
    DLED
    Resolution
    3840 (H) × 2160 (V)
    Viewing angle
    178° horizontally and 178° vertically
  • Touch
    Materials
    Anti-glare tempered glass with surface hardness up to 7 on Mohs scale
    Touch technology
    IR
    Touch point
    20
    Writing tool
    Finger + smart pencil
  • Audio and Video
    Amplifier
    Built-in speaker
  • Input/Output Port
    Video input
    HDMI input*3 VGA*1
    Video output
    HDMI output*1
    Audio port
    Audio input*1, audio output*1
    USB port
    TOUCH OUT*2, USB3.0*3, USB2.0*3
    Network port
    1-channel RJ45 1000M Ethernet port
  • Wireless network
    Wi-Fi and hotspot
    Both Wi-Fi and hotspot support 2.4G/5G dual band; Wi-Fi and hotspot can be enabled at the same time.
  • Android System
    Operating system
    Android 8.0
    Configuration
    Quad-core, RAM: 4G, ROM: 32G
  • Physical Features
    Power supply
    100 V/AC–240 V/AC, 50/60 Hz 2.5A
    Maximum power consumption
    250W
    Standby power consumption
    ≤ 0.5W
    Operating temperature
    0℃–40℃
  • Dimensions
    Dimension of the bare machine
    1489 mm × 906 mm × 89 mm
    Packing dimensions
    1656 mm × 204 mm × 1050 mm
  • Weight
    Net weight
    37.5 kg
    Gross weight
    49.8 kg
