Public Address System

Hitrolink IP network PA system using TCP/IP technology to transfer audio with package form, which is a pure digital and dual-direction audio system. It realizes the integration of computer network, digital video monitor system and public audio system under same network with various terminal accessed.

SPECIFICATIONS

DATASHEET

High Performance System Center
All-in-one Microphone Station
Various Speaker

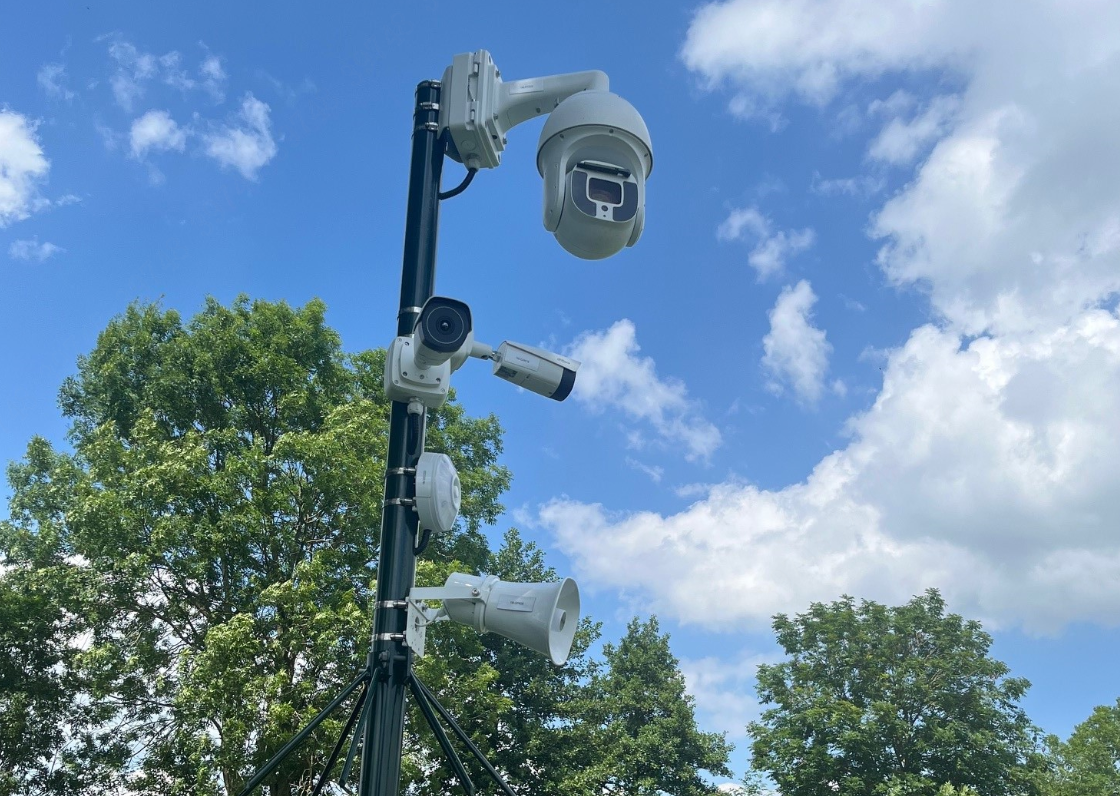

Actual Installation

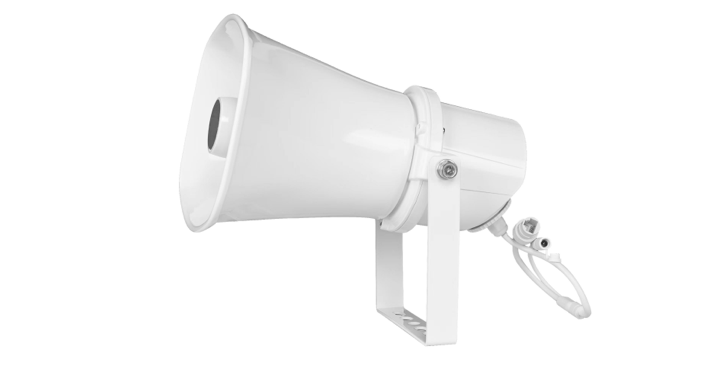

HTI-SH30

Supports remote network control, compatible with Dahua NVR and DSS platforms, Rated Power: 15W Power Supply Mode: PoE(IEEE 802.3at)/DC24V 2A (Standby) Storage: 512MB(expandable) Waterproof Class: IP67, IK10 Material: Aviation aluminum Color: White
IP Control Center HTI-S17-C

Industrial grade chassis with excellent internal heat dissipation design. Configured with 17.3 inch high-definition touch screen, efficient and low-power. Intel I5 CPU processor, 240G large capacity Solid-state drive, 8G memory. 4. 6 USB ports, 1 VGA interface for external display devices
7inch Screen IP Microphone Station: HTI-TW07

Built in AI intelligent speech recognition library, supporting voice command execution operations. 7-inch color touch screen with a resolution of 800 * 480. Built in 3W speaker. It can broadcast calls to the entire area, partitions, and individual terminals. File broadcast and pre-recorded broadcast can broadcast local audio files or recordings to designated terminals.
HTI-CM20

Background noise cancellation technology Adjustable Plastic metal hose User-friendly switch
HTI-A6611

10*input (5*microphone, 3*cable, 2*emergency input). Independent volume control for each channel
HTI-T6629

DVD player (can also be connected to a USB drive). MP3 player (can be connected to a USB drive or TF card). TUNE
HTI-S8904

Delicate high pitched sound, ample mid to low frequencies. True diversity technology and ID code verification to eliminate any signs of crosstalk interference. Digital voice code locking technology.
HTI-SW08/ HTI-SW05-C

Built-in amplifier and codec. POE power supply. Remote monitoring and control.
HTI-TW20/40-C

Built-in amplifier and codec. POE power supply. Remote monitoring update and control. IP camera integration.
HTI-BW15-C

One key for full-duplex intercom. Built-in speaker and microphone. Built-in switchable voice change function.
HTI-PW20-C

Built-in 1* network hardware audio decoding, support TCP/IP, UDP, IGMP (multicast) protocol. POE power supply. 16-bit CD quality audio signals.
HTI-FW119

1* Manual triggering alarm function; 32* alarm short* input interface, 8* short* output interface. Automatically send alarm information to the server. Connect with various types of sensor.
HTI-BW60/ HTI-BW240

Low power consumption--Standby power consumption ≤6W. Class D, 100V, 70V constant voltage output or 4-16. ohm fixed resistance output, 240W power supply. 2* microphone input, 3*AUX input, 1* mixed output.
HTI-M16

Ensure the stability of the entire power system during operation. Controllable power supply: 16.

SPECIFICATIONS

HTI-S17-C

Audio interface

1* speaker in 1* line in, 1*line out

USB interface

Front 2*USB type-A, backside 4*USB type-A

Display interface

1*VGA for extra display screen

Dimension

484×340×325（mm）

Power supply

AC 220V

Power consumption

230W

Net weight

15kg
HTI-SH30

Rated Power

15W

Microphone

Built-in 1 Mic

Power Supply

PoE(IEEE 802.3at)/DC24V 2A (Standby)

Amplifier Description

Built-in 15 W and 8Ω amplifier

Network Port

1 RJ45 port

Network Protocol

TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF

Audio Protocol

MP3, G.711a/u

Frequency Response

250 Hz–16 kHz

Max Sound Pressure Level

108 dB

SNR

75 dB

Coverage Pattern

H: 70°; V: 100°

Product Dimensions

228 mm × 170 mm × 250 mm (8.98" × 6.69" × 9.84") (L × W × H)

Net weight

1.8kg
