HTI-ASP08

Hitrolink Integrated Speaker

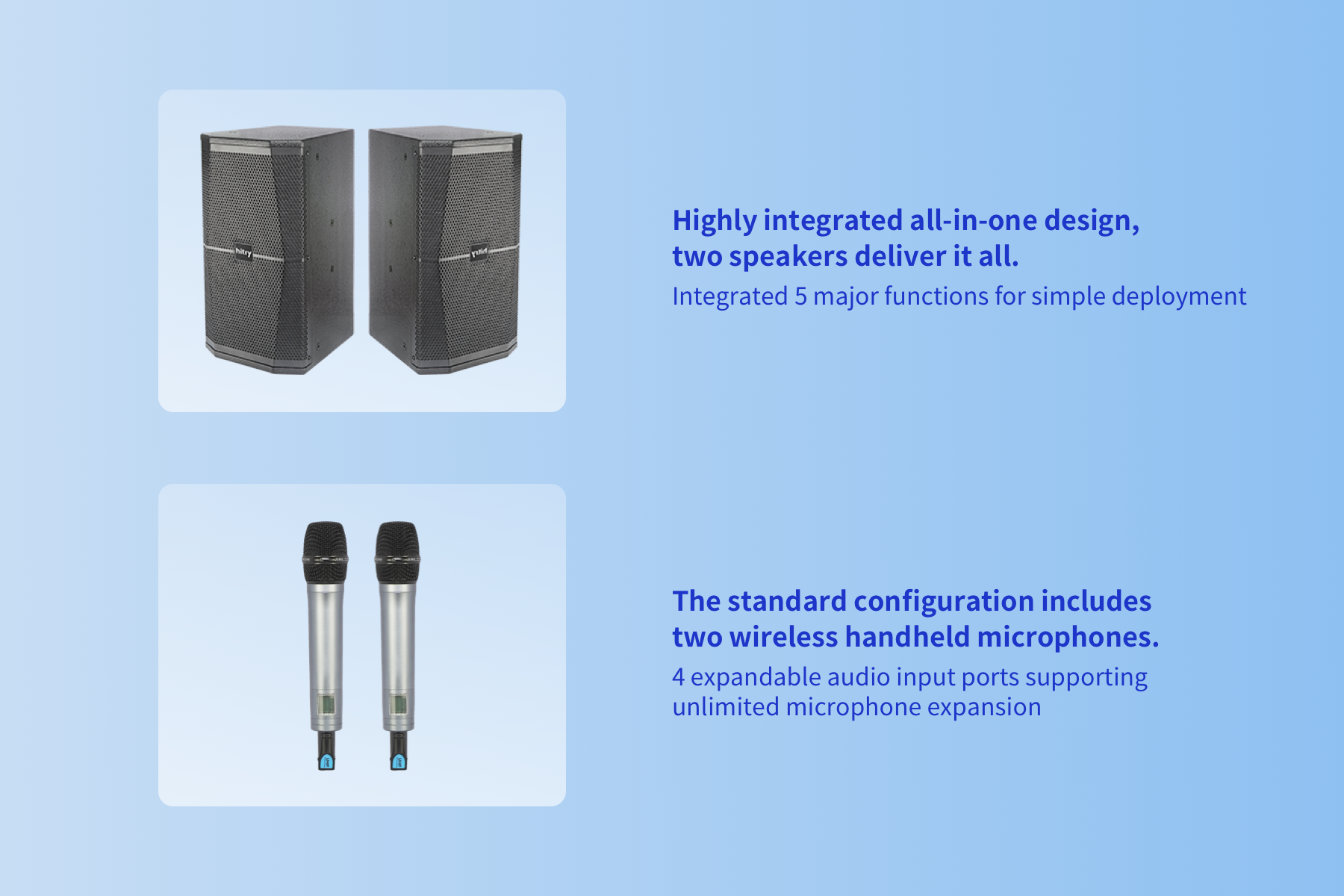

A product that replaces all audio devices in traditional server cabinet. Built-in Wireless Handheld Microphone. Simultaneously connect to computer audio, handheld microphone, and video conference. Automatic anti-howling and automatic echo cancellation. Built-in advanced digital audio processing algorithms. Supports preset sound effects.
SPECIFICATIONS
DATASHEET
SPECIFICATIONS
  • Speaker
    Frequency response range
    60 20KHz
    Impedance
    8Ω
    Sensitivity
    94dB
    Rated Power
    150W
    Peak Power
    300W
    Max. Sound Pressure Level
    106dB
    Unit configuration
    8 inch 50 core 140 magnetic woofer, 34 core horn tweeter
    Speaker material
    15 mm high quality splint
    Divergence angle
    100 (H ) × 50 (V)
    Dimension
    479*266*290mm
    Net weight
    12kg(Main speaker)
    11kg(Sub speaker)
    Gross Weight
    15.1kg(Main speaker)
    13kg(Sub speaker)
  • Device function
    Frequency Range
    610-690MHz
    Wireless reception Sensitivity
    108dBm @12dB SINAD
    Power amplifier Output
    2x150W @ 8Ω
    Analog Channel Background Noise
    -86dBu
    Frequency Response
    -1.6dBu @20 20kHz
    Amplifier Total Harmonic Distortion (THD) (THD + N)
    ≤0.02% @1kHz 1W
    Enter Output Quantization
    48KHz/24bit
    Analog Maximum Gain
    48dB
    Input CMRR
    70 dB @60Hz
    Analog Input Impedance
    20kΩ balance
    10kΩ unbalance
    Channel isolation
    >100dB
