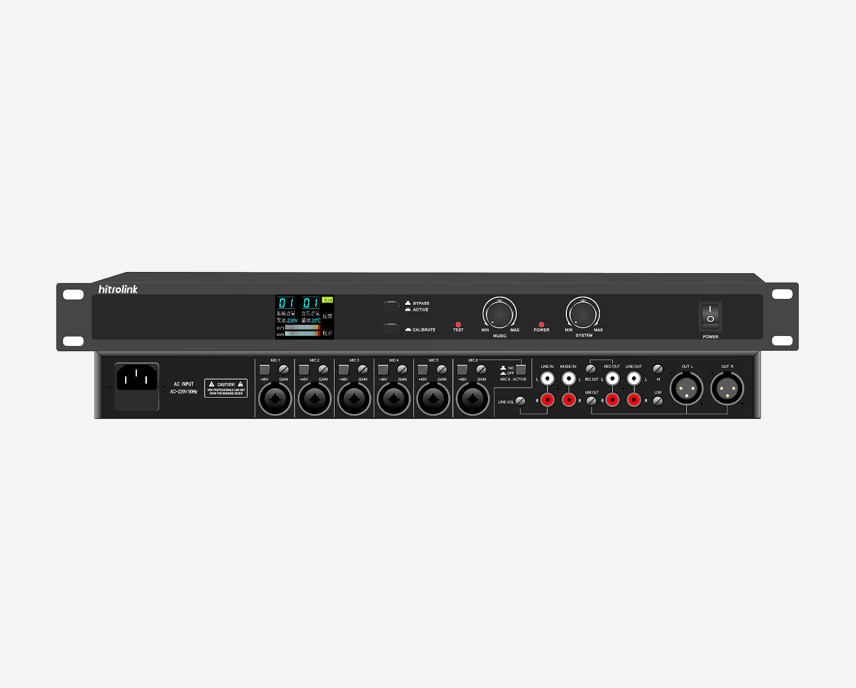

HTI-A-FS06

6X2 Feedback Suppression Processor
Full-time self-fit filtering algorithm, intelligent high-speed feedback processing, even in poor environment, can greatly suppress feedback Plug and play, one-click to enter operating mode, no commissioning Compatible with all capacitance microphones on the market, highly efficient to improve microphone gain 6-15dB, speaking distance 30-150MM; With 1.8-Inch LCD color screen to display current device working status and system output level 6-way MIC balanced (unbalanced) signal input and 2-way balanced signal output, each balanced enter with independent gain adjustment and 48V phantom power supply; Support one-click setting device feedback, bypass operating mode on the front panel The 6th microphone can set feedback, bypass operating mode separately; 2 sets of RCA auxiliary enter and two set
SPECIFICATIONS
  • Sampling Rate
    40KHz
    Frequency Response
    20Hz~20KHz
    SNR
    >90dB
    Signal delay
    <11ms
    Frequency deviation
    -5Hz
    Input Gain
    54dB
    Frequency Response
    20Hz~20KHz
    Balanced input impedance
    68kΩ
    Line input impedance
    10kΩ
    Music input impedance
    10kΩ
    Balanced output impedance
    1kΩ
    Line out impedance
    2kΩ
    Music output impedance
    2kΩ
    Balanced input sensitivity
    -30db~56db
    Feedback suppression response frequency
    20Hz~20kHz
    Direct mode response frequency
    20Hz~20KHz
    Dimension
    480*250*45mm
    Net weight
    3kg
    Gross weight
    3.5kg
