HTI-UC500

4K Integrated Soundbar
UHD 4K Integrated Soundbar is designed for small meeting rooms, integrates with extraordinary mic, speaker and camera. The features of speaker tracking, Bluetooth and auto-framing make it more attractive.
SPECIFICATIONS
DATASHEET

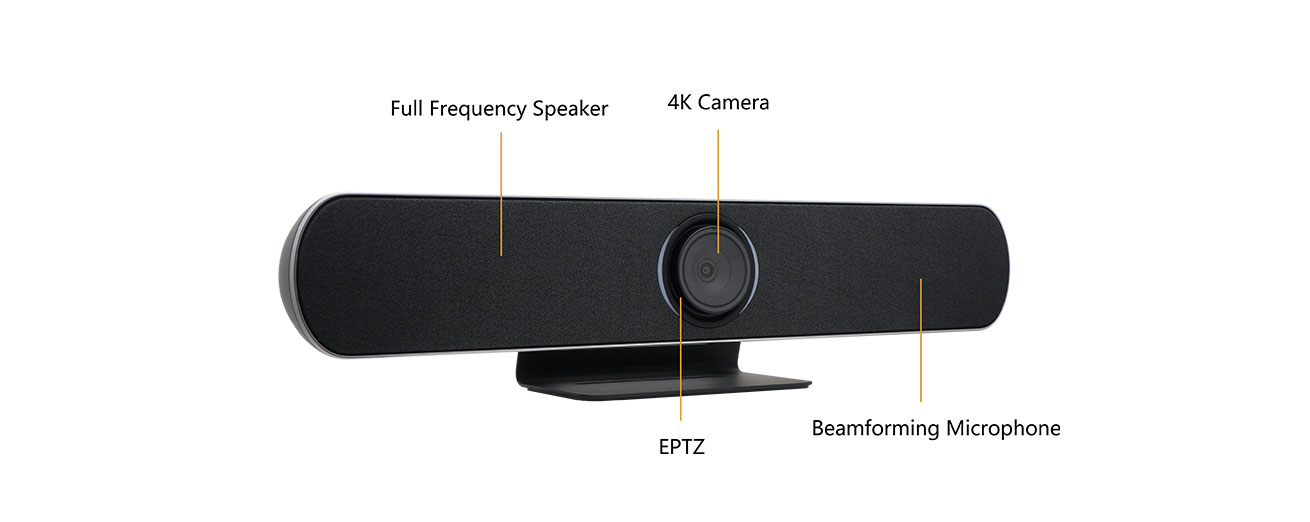

  • Design

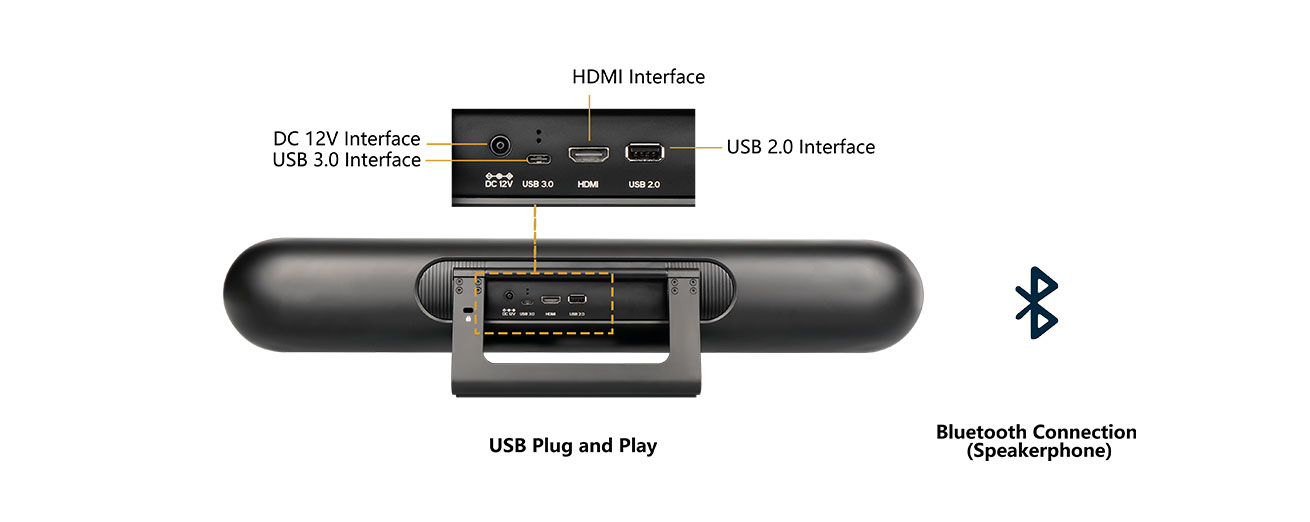

  • Connection

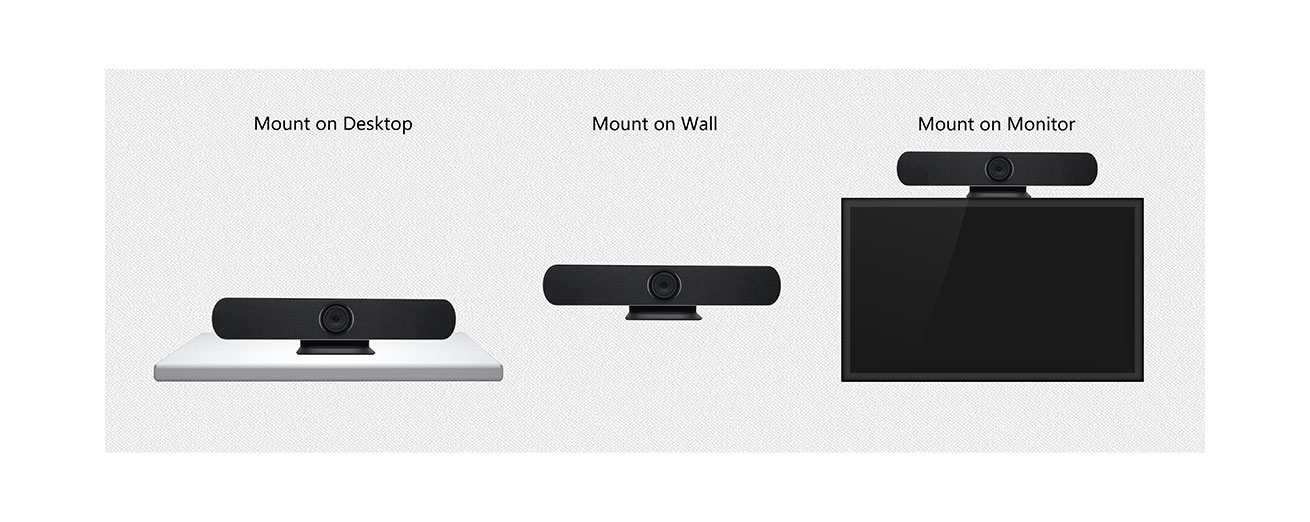

  • Setup.png
Fantastic Sounds
Built-in Beamforming Microphone 6 Meters Pick-up Distance
UC500 has built-in Beamforming (BF) microphone with a pickup distance of 6 meters. The low-distortion transverse beamforming algorithm can direct the microphone directly to the speaker, delivering better sound, clearer communication, fuller and more authentic.

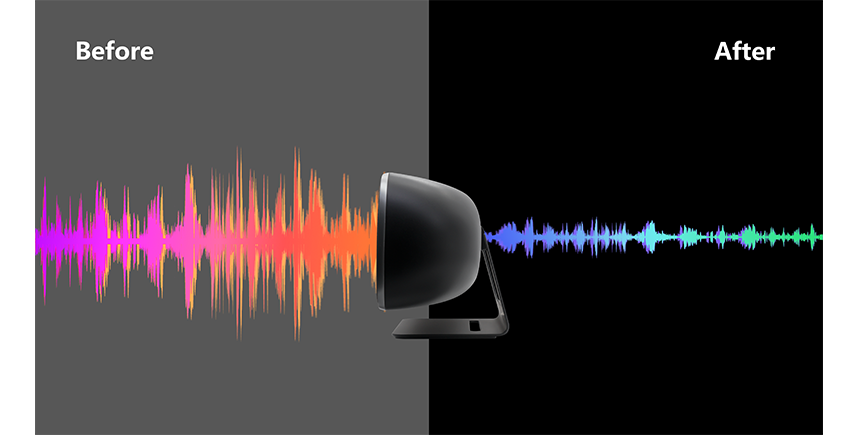

AI-Noise Reduction
When AI knows which sounds need to be suppressed, it can then employ active noise-cancelling to eliminate that background noise. Active noise-cancelling happens when the machine detects noise that needs to be eliminated and then generates its own noise that is out of phase with the background noise.
High Compatibility
UC500 is compatible with many popular video conferencing platforms such as Zoom, Teams, Skype etc., ensures the smooth experience.
SPECIFICATIONS
  • Camera
    Image Sensor
    1/2.5 inches, CMOS
    Effective Pixels
    8.51MP
    Resolution
    4K/30, 1080P/30, 720P/30 etc
    Lens Zoom
    5x zoom
    Field of View
    121° (DFOV), 110° (HFOV), 75° (VFOV)
    Tripod Head
    Mechanical PTZ (MPT) + e-PTZ(EPTZ), EPTZ: Horizontal/pitch ±15°
    Digital Noise Reduction
    2D & 3D Digital Noise Reduction
    Color System /Compression
    H.264 / MJPEG /YUY2 /NV12
    Backlight Compensation
    Support
  • Audio
    Built-in Beamforming Mic
    6 meters pickup distance
  • USB
    Communication protocols
    UVC 1.1~1.5
    UVC PTZ Control
    Support
    Type of Connection
    USB 3.0, backward compatible with USB 2.0
  • Interfaces
    HD Output
    1 x HDMI, Version 1.4b
    USB Interface
    1 x USB3.0, Type C; 1 x USB2.0, Type A
    Wireless
    Bluetooth data communication(Bluetooth 5.0)
  • Physical Features
    Power Supply
    DC 12V, 2A (MAX)
    Dimensions
    600mm*135mm*117mm
    Net Weight
    2.5Kg
    Safety Protection
    Kensington Lock
